Style: Wood Grain — realistic timber texture with natural grain patterns and warm tonal variation
Size: 3030×455×15mm / 3030×455×16mm / 3030×455×18mm / 3000×585×15mm / 2440×585×15mm
Weight: Around 19kg/sqm (16mm/18mm), 21kg/sqm (15mm)
Features: A1 Grade Fireproof · Weather Resistant · Zero Maintenance · Termite & Rot Proof
KTC Wood Grain fiber cement exterior panels deliver the natural warmth and character of real timber — without any of the problems that come with wood cladding in outdoor environments.
Each panel features detailed embossed textures that faithfully reproduce the grain patterns, surface ridges and color variations found in natural timber. The result is a facade that looks and feels like wood, but will never rot, warp, crack or attract termite damage — even after decades of exposure to rain, UV and temperature extremes.
Manufactured from Portland cement, plant fiber and quartz sand in a 100% asbestos-free process, Wood Grain panels combine the aesthetic appeal of timber with the structural performance of fiber cement. The proprietary fluorine coating provides up to 20 years of color stability, while the hydrophilic self-cleaning surface eliminates the need for regular painting, staining or power-washing that real wood demands.
| Material | cement, plant fiber, quartz sand, water |

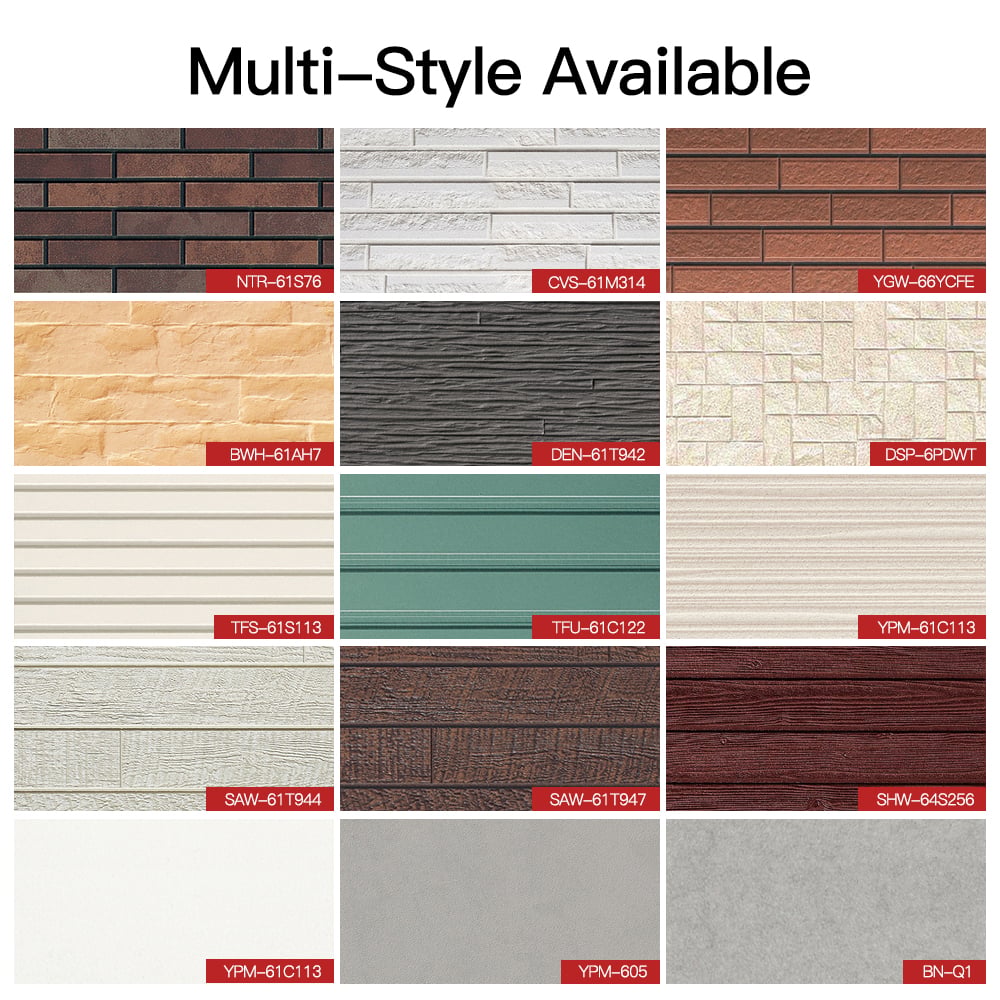

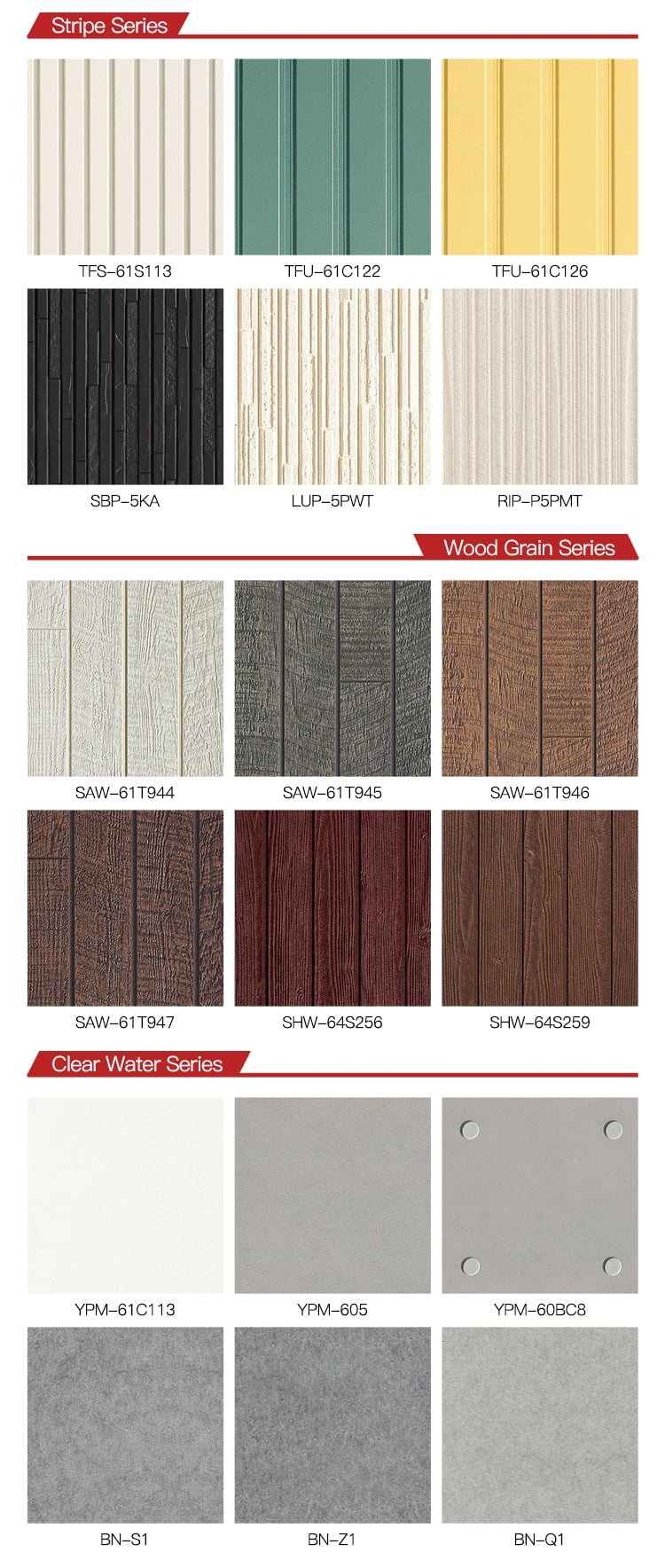

| Style | Brick pattern, wood grain, stripes, culture stone, flat 5 series,Hundred choices |
| Size | 3030*455*15mm, 3030*455*16mm, 3030*455*18mm,3000*585*15mm, 2440*585*15mm |
| Density | 1.1-1.3 |
| Weight | Around 19kg/square (16mm)(18mm),21kg or so/square (15mm) |
| Production Process | Molding method,Extrusion method |
| Features | A1 Grade Fireproof,Various Effects,Strong Plasticity,Support Customization |
KTC Wood Grain panels are available in thicknesses from 15mm,16mm and 18mm, with standard widths of 3030, 3000 and 2440mm. T

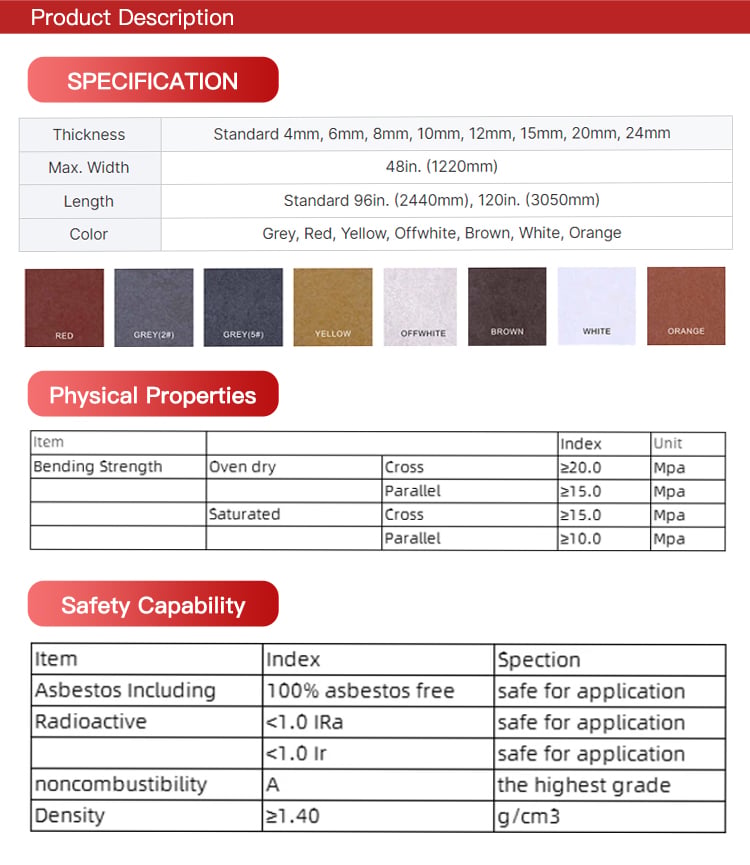

Engineered for demanding outdoor conditions, the panels deliver bending strength of ≥20.0 MPa (cross-direction), A1 non-combustible fire rating and 100% asbestos-free composition. Density ≥1.40 g/cm³ provides solid, durable construction that withstands extreme weather — from coastal salt air to freeze-thaw winters.

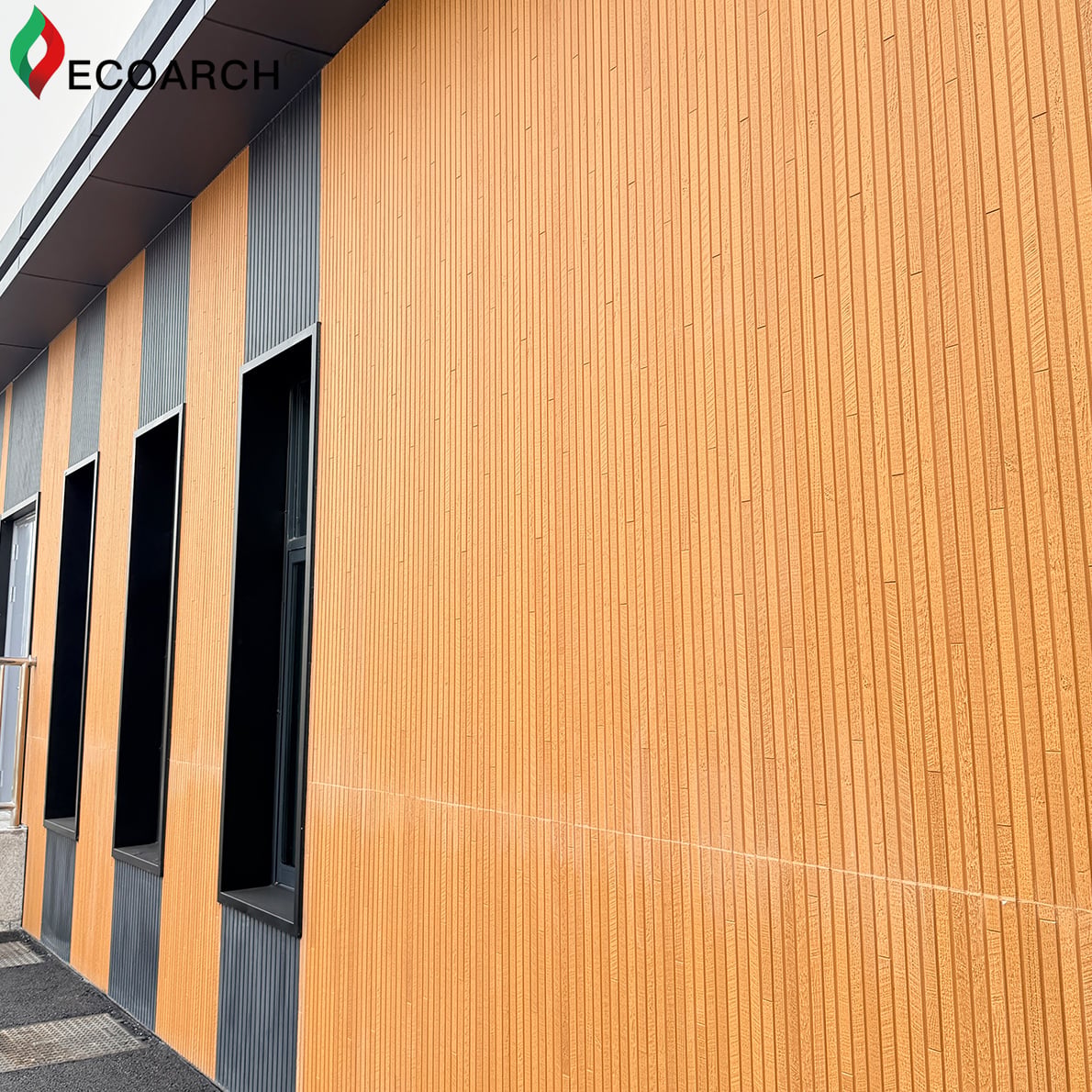

Designed for projects where the beauty of wood is essential but long-term outdoor durability and zero maintenance are non-negotiable — including residential villas, hotel buildings, resort developments and commercial streetscapes.
Each panel features detailed embossed textures that faithfully reproduce the grain patterns, surface ridges and color variations found in natural timber. The result is a facade that looks and

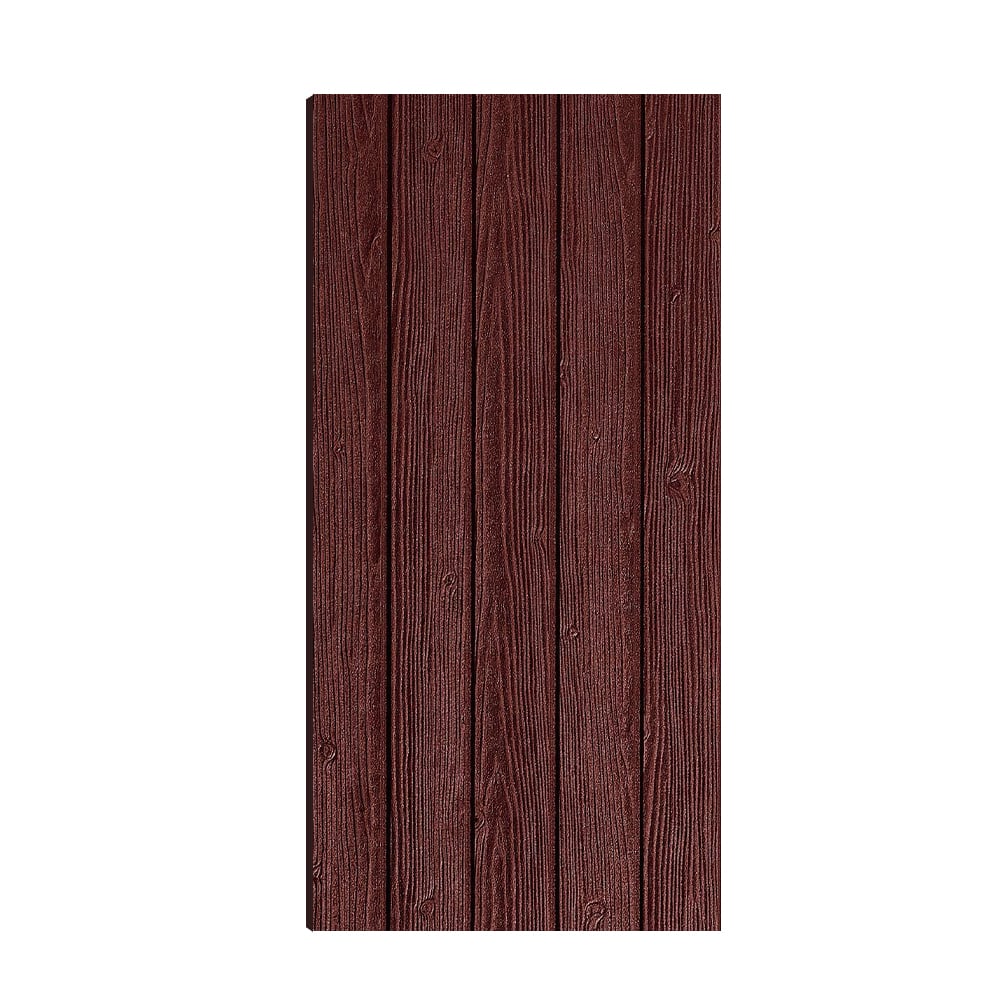

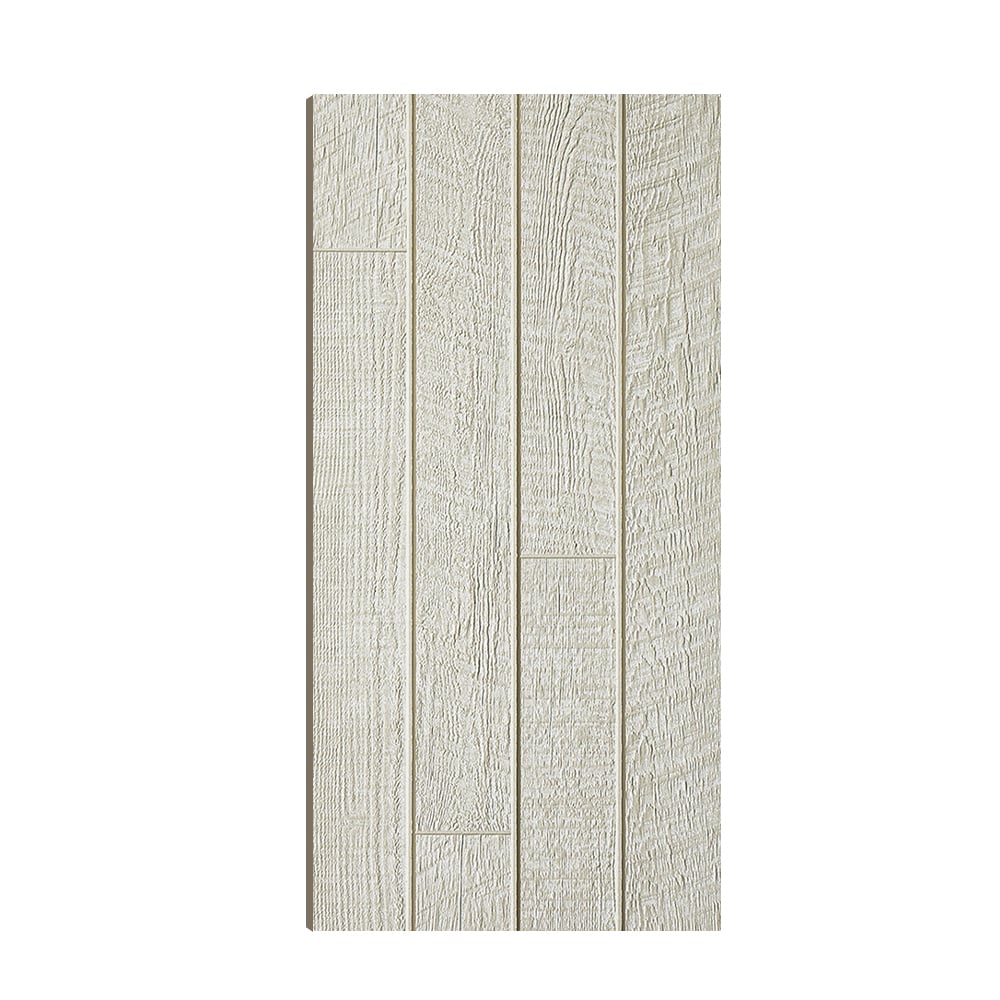

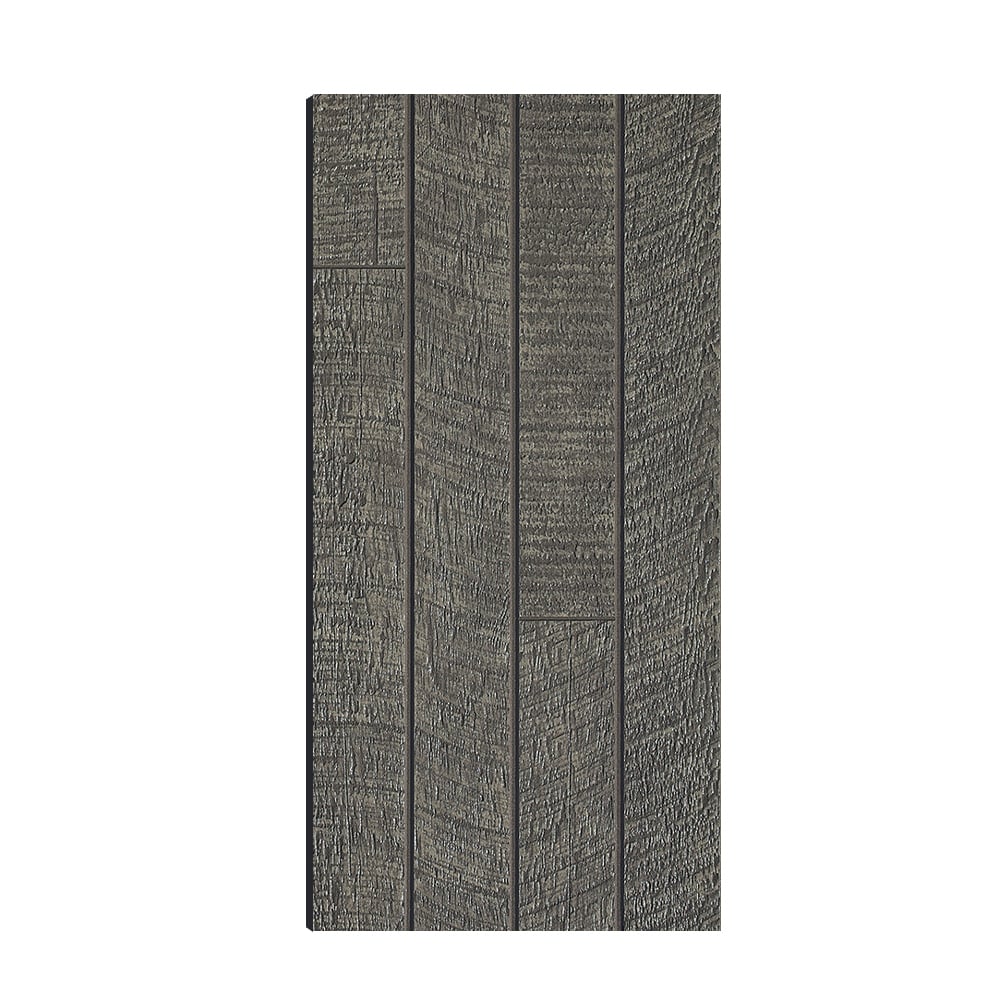

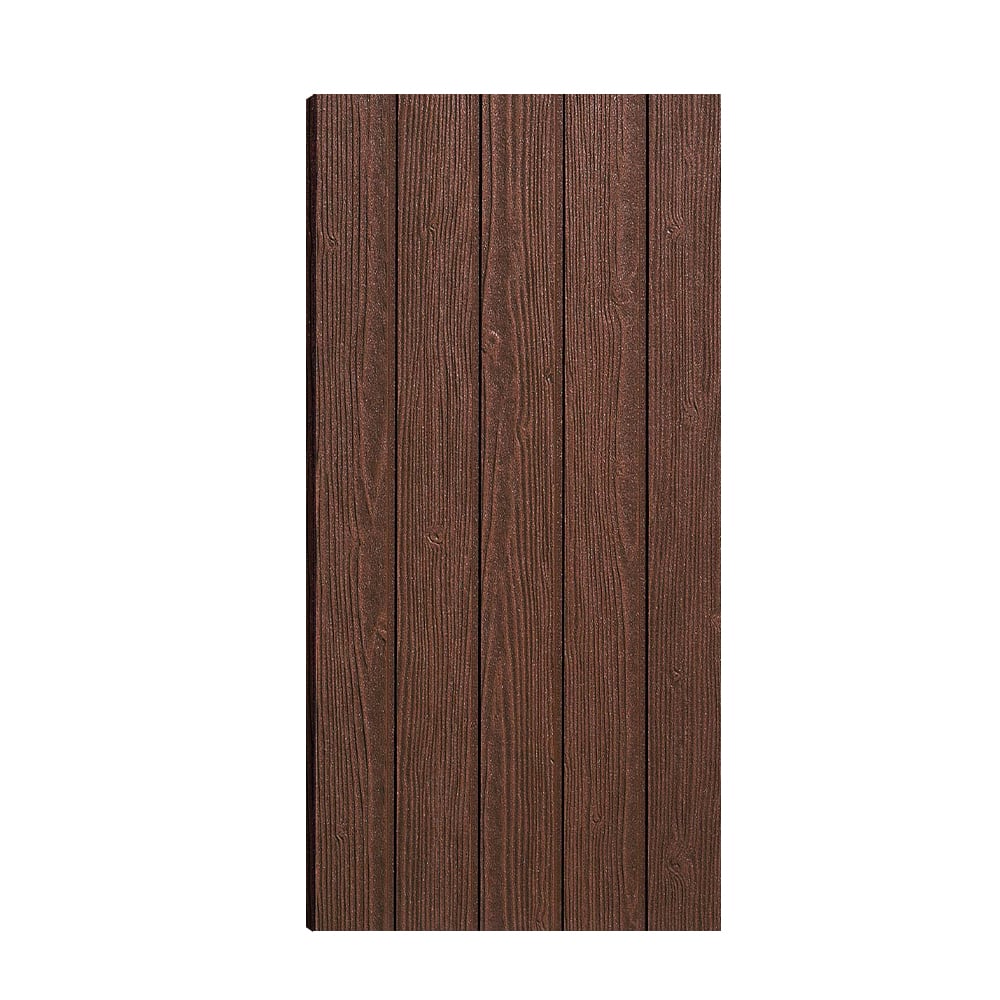

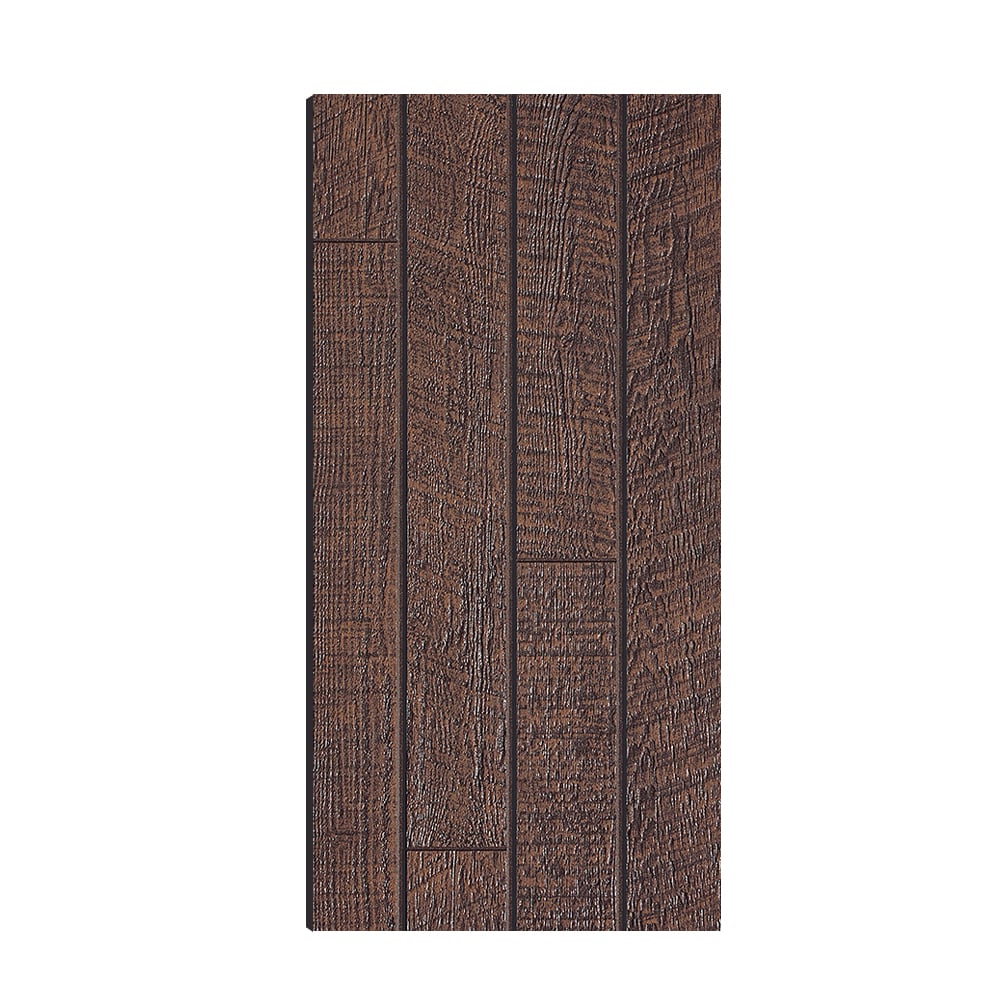

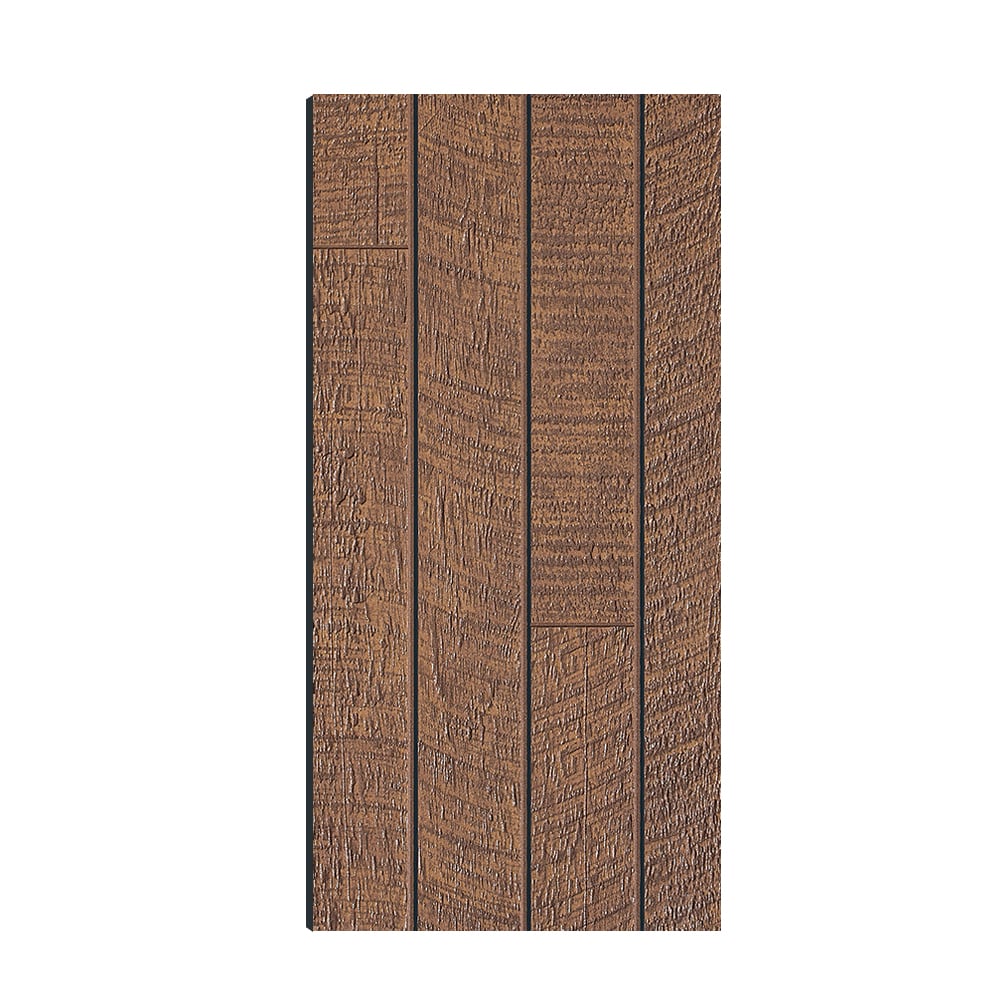

The Wood Grain Series captures the authentic character of natural timber through precision-embossed surface technology. Each panel replicates the distinctive grain patterns, subtle surface ridges and warm tonal shifts found in real sawn timber.

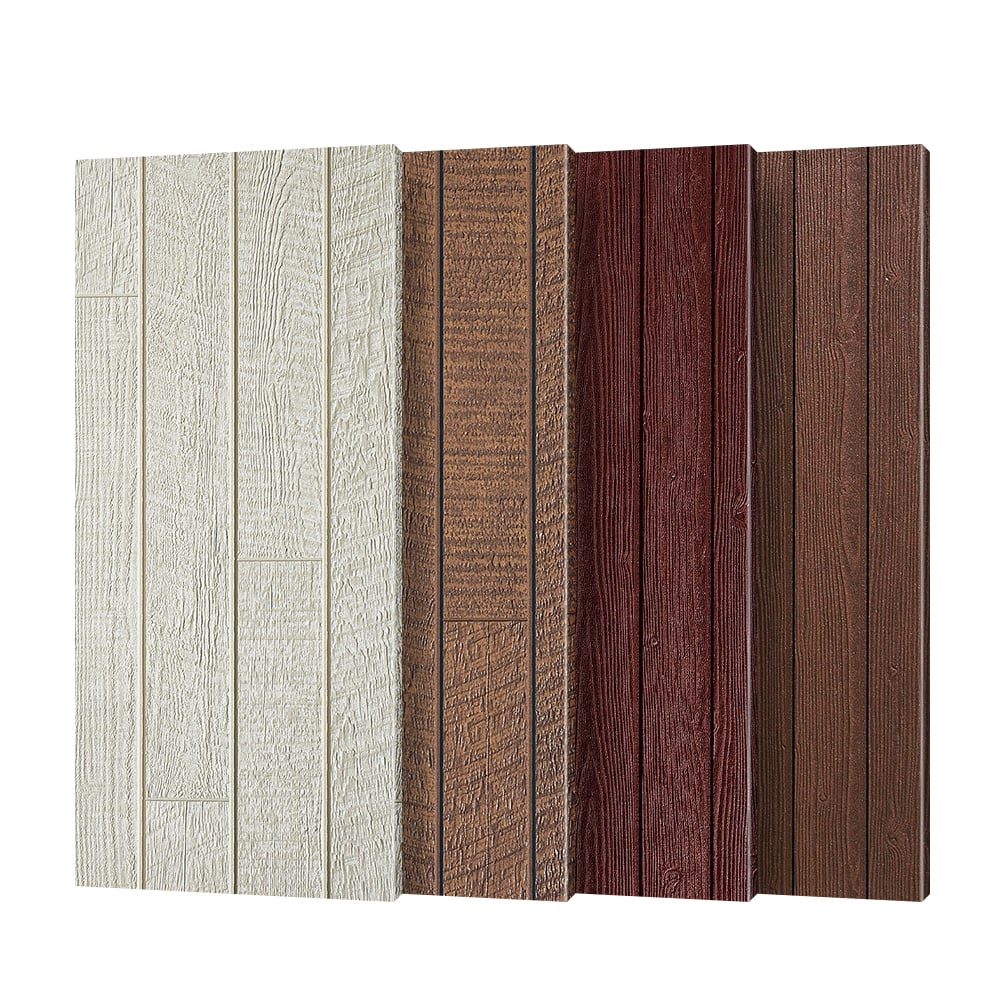

Available in a range of timber-inspired finishes — from warm oak tones to aged weathered wood effects — providing design flexibility for projects ranging from traditional residential aesthetics to modern architectural statements.
Unlike real timber, every panel maintains consistent quality and appearance. No natural defects, no batch-to-batch variation, no hidden weaknesses. Custom colors available for project-specific requirements. Sample size: 200×225mm.
Real Wood Appearance — Zero Wood Problems
Wood Grain panels achieve the look, texture and warmth of natural timber with none of the vulnerabilities. No rotting. No warping. No termite damage. No cracking from freeze-thaw cycles. The facade looks like wood but performs like engineered building material.
Maintenance-Free for 20+ Years
Real timber cladding requires regular staining, painting or sealing to maintain appearance — typically every 3–5 years. KTC Wood Grain panels need none of this. The fluorine protective coating preserves color and surface quality for up to 20 years with no periodic treatment required.
Superior Weather Resistance
Unlike timber that absorbs moisture, swells and degrades over time, KTC Wood Grain panels are inherently weather-resistant. Rain, UV exposure, salt air and temperature extremes have no impact on structural integrity or visual appearance.
|

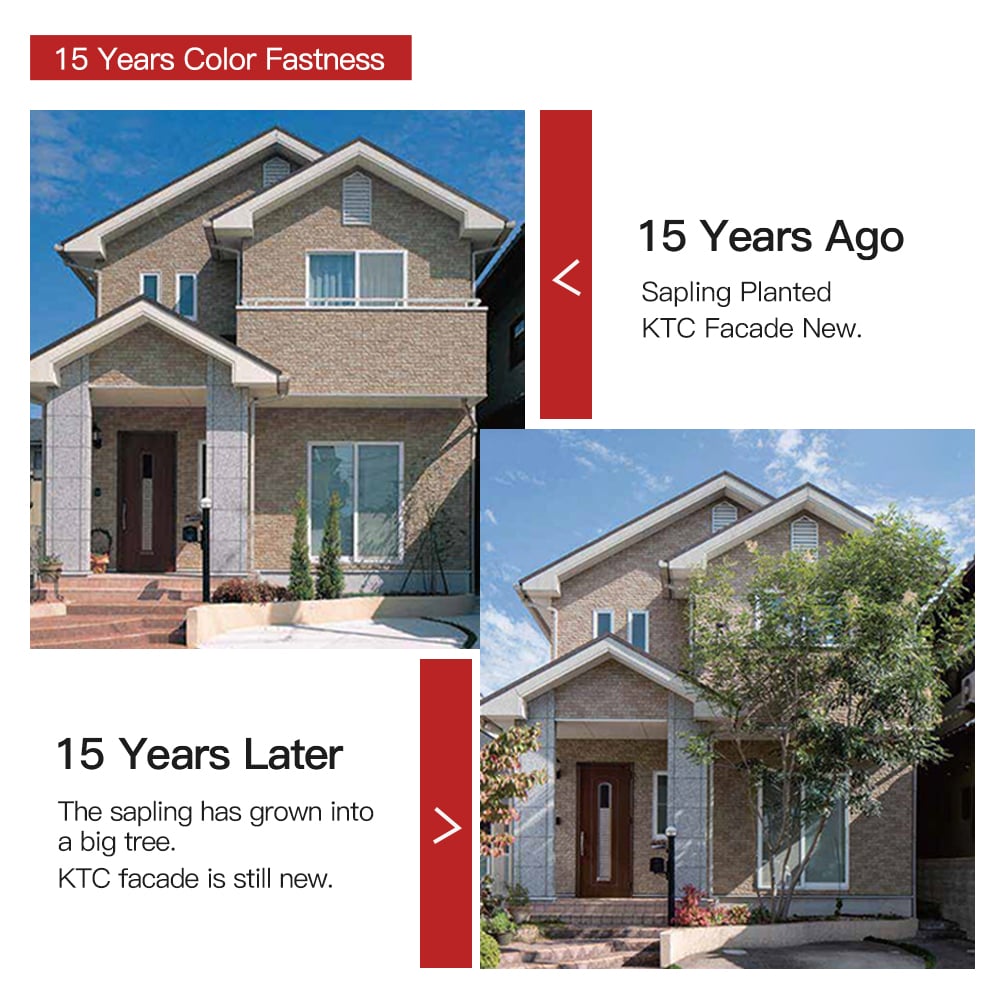

20-Year Color Retention — No Repainting RequiredOne of the biggest long-term costs of real timber cladding is the recurring need to repaint or re-stain the facade. KTC Wood Grain panels eliminate this entirely. The proprietary fluorine coating delivers exceptional UV resistance, maintaining the wood grain’s original color and texture for up to 20 years — without fading, peeling or surface degradation. Even after two decades of continuous outdoor exposure in high-UV climates, the facade retains its timber-like warmth and character. For property owners, this means zero repainting costs and zero maintenance scheduling — a significant advantage over timber, especially for multi-story residential and hotel projects. |
|

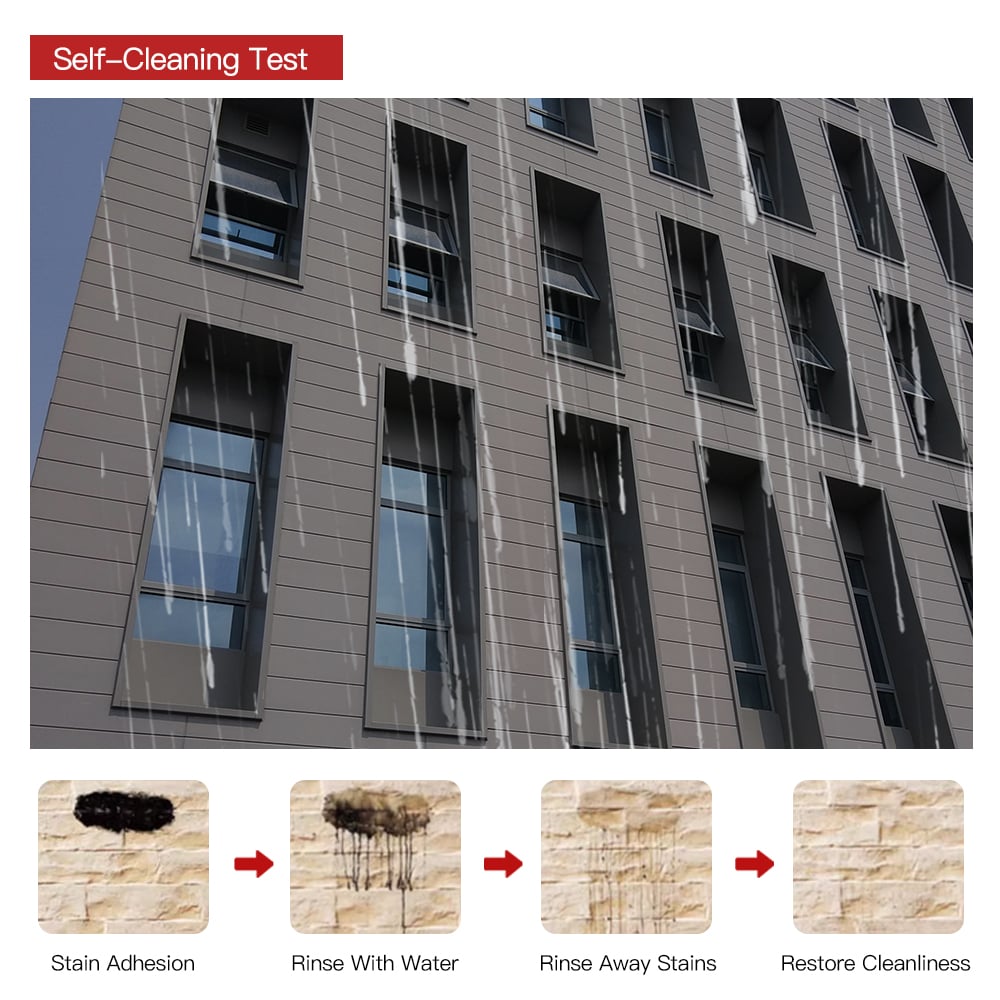

Effortless Surface MaintenanceReal timber surfaces absorb dust, trap moisture in grain grooves and develop mildew or algae growth over time — requiring regular pressure washing and chemical treatment to maintain appearance. KTC Wood Grain panels solve this with a proprietary hydrophilic coating. Rainwater spreads evenly across the surface, lifting dirt, dust and biological contaminants naturally. The embossed wood grain texture stays clean and vibrant with virtually no manual maintenance. For hotel and hospitality projects where facade appearance directly impacts guest perception, this self-cleaning performance delivers consistent curb appeal year after year — without the maintenance cost of real timber. |
Key Advantages of KTC Wood Grain Exterior Panels
1. Authentic Timber Appearance
Embossed surface textures faithfully reproduce wood grain patterns, ridges and tonal variation — creating facades visually indistinguishable from real timber at normal viewing distance.
2. Immune to Rot, Warp & Termite Damage
Unlike natural wood, KTC Wood Grain panels are manufactured from inorganic cement-based materials. They will never rot, absorb moisture, warp or become home to termites — eliminating the three most common failure modes of timber cladding.
3. Zero Periodic Maintenance
No staining. No painting. No sealing. The fluorine protective coating maintains appearance for up to 20 years without any treatment — saving significant long-term maintenance costs compared to real timber.
4. A1 Fireproof — Critical for Residential & Hospitality
Real timber is combustible and often restricted by building codes for certain applications. KTC Wood Grain panels achieve A1 non-combustible rating, meeting fire safety requirements for residential buildings, hotels and commercial projects.
5. Superior Weather Resistance
Impervious to moisture, UV radiation, salt air and temperature extremes. Unlike timber that expands, contracts and degrades, Wood Grain panels maintain dimensional stability and appearance through decades of outdoor exposure.
6. 20-Year Color Stability
Proprietary fluorine coating resists UV fading and surface degradation, preserving the timber-inspired color for two decades — no repainting needed.
7. Lightweight & Easy to Install

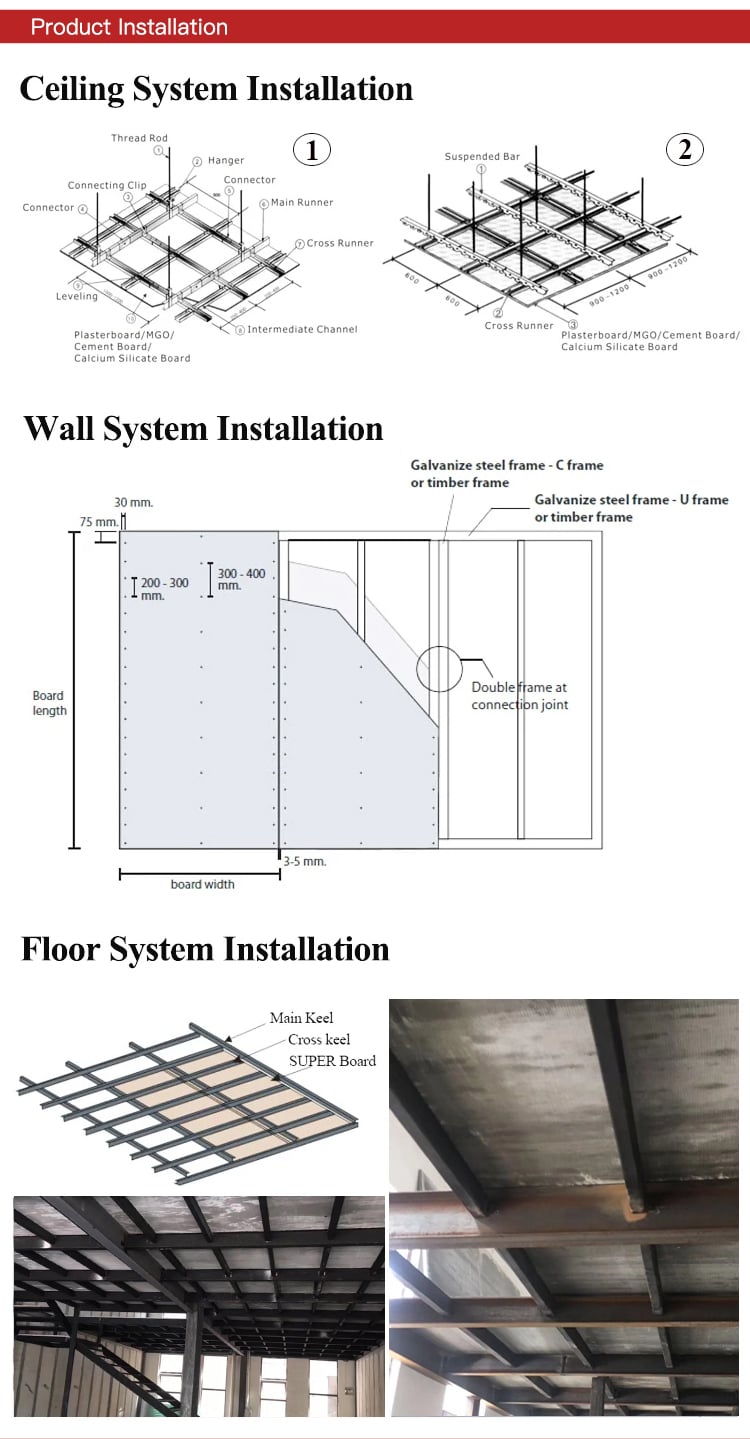

At 19–21 kg/sqm, the panels are manageable on-site and install efficiently with standard dry-hanging systems — 3-5 times faster than traditional cladding methods.
8. Consistent Quality, No Natural Defects
Factory-manufactured panels deliver uniform color, texture and dimensions across every batch — unlike natural timber where knots, splits and grain variations create inconsistency.

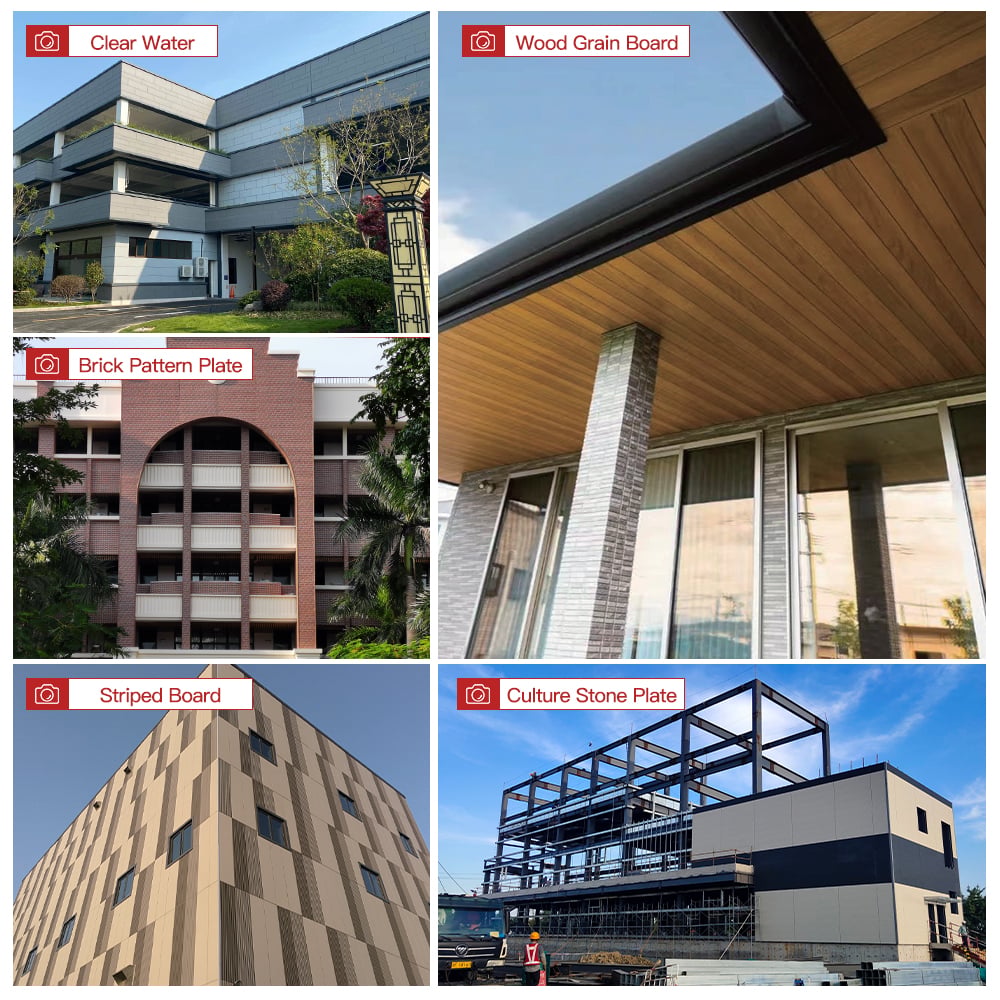

Designed for Residential, Hospitality & Commercial Projects
KTC Wood Grain panels are specified for projects where the aesthetic warmth of timber is desired with the durability and safety of fiber cement:
With authentic wood aesthetics, A1 fireproof performance, weather-resistant durability and zero maintenance requirements, KTC Wood Grain panels provide an ideal facade solution for projects in the United States, Australia and other markets with demanding climate conditions.
Q1: Does wood grain fiber cement actually look like real wood?
Yes. KTC Wood Grain panels feature precision-embossed textures that replicate the grain patterns, surface ridges and tonal variation of natural timber. At normal viewing distance, the panels are visually indistinguishable from real wood cladding.
Q2: How does wood grain cement siding compare to real timber?
Unlike real wood, KTC Wood Grain panels are fireproof (A1 rated), termite-proof, rot-resistant and do not require regular painting or staining. They deliver the look of timber with significantly lower long-term maintenance and a service life measured in decades, not years.
Q3: Will the wood grain color fade over time?
The proprietary fluorine coating provides up to 20 years of color stability under normal outdoor conditions, including high-UV environments. The panels resist fading, peeling and surface degradation without any periodic treatment.
Q4: Is wood grain fiber cement suitable for coastal or high-moisture areas?
Yes. Unlike real timber that absorbs moisture and degrades in humid or coastal environments, KTC Wood Grain panels are impervious to water, salt air and humidity — making them ideal for coastal residences, tropical resorts and areas with high rainfall.
